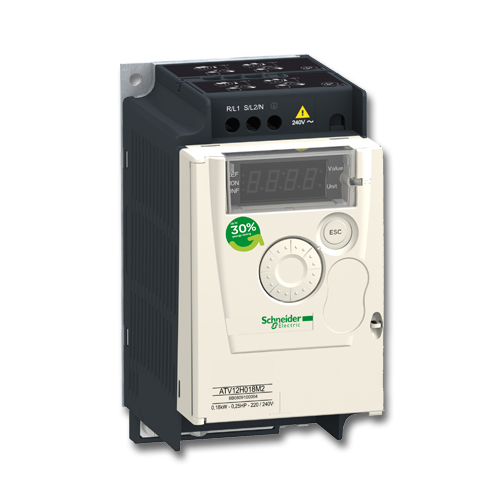

Altivar 12 Drives

PRODUCT PROPERTIES

Benefits
Discreet in size but big on performance!

The Altivar 11 range is replaced by the Altivar 12 range.

Variable speed drives for small machines with three-phase 240 V asynchronous motor

0.18 to 0.75 kW, 120 V single-phase power supply

0.18 to 2.2 kW, 240 V single-phase power supply

0.18 to 4 kW, 240 V three-phase power supply

Can be configured in its packaging
Quick start option requiring no adjustment
Intuitive navigation
Even more compact
Category 1 EMC filter
Local control on the front panel
Modbus serial link
Resistant to harsh operating environments
Applications
Simple machines for industry
Material handling (small conveyors, etc.)
Packaging (small labelling machines, small bagging machines)
Pumping applications (suction pumps, centrifugal pumps, circulating pumps, etc.)
Machines fitted with fans (air or smoke extraction, plastic film making machines, ovens, boilers, etc.)
Simple consumer machines
Handling (access barriers, rotating advertising hoardings)
Health (medical beds, running machines)
Food and drink (mills, kneading machines, mixers, etc.)
Other types of application
Food and drink (battery farming, greenhouses, etc.)
Mobile machines and small devices equipped with a power socket
Applications which traditionally use other solutions (2-speed DC motors, mechanical drives, etc.)

TECHNICAL PROPERTIES
A design focussed on integration
Advanced functions for increased productivity (integrated PID, multi-speed, etc.)
Easy communication with all other machine components via integrated universal Modbus serial link
Smaller footprint, notably in terms of the depth of equipment, as the baseplate mounted version dissipates heat into the machine frame
Description
No compromise on quality
Ever higher performance for your motors ensured by:

The factory settings, which provide a high quality drive from the very first time the power is turned on
The integration of Standard (U/f), Performance (sensorless flux vector control, or SVC) and Pump/Fan (quadratic profile Kn²) control profiles
High dynamic performance on acceleration as well as on braking
Excellent speed regulation on machine load surges
Reduced noise and maintenance
Designed for easy fitting and wiring of the drive:

Easy access angles
Numerous, easy to identify markings
Fast detection and protection against motor current peaks (common in motor switching and catch on the fly applications)
Perfect integration of single-phase 240 V model into the electrical network thanks to its built-in EMC filter
Save time on wiring

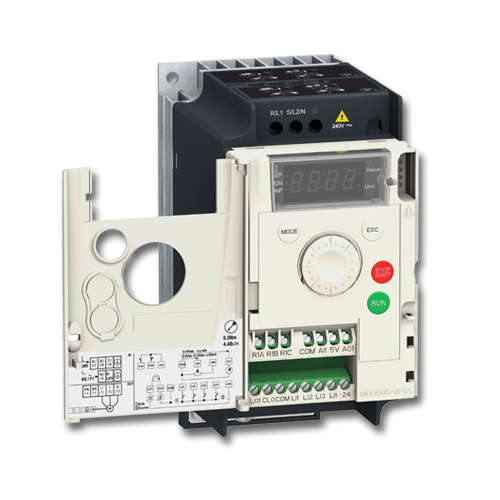

Easy access to all the wiring and settings on the front panel
Easy access angles
Only one screwdriver needed for all connections
Save time on programming
A navigation button for easy menu access: configure your application parameters in just a few clicks
A three-level menu structure
Reference Mode: In local operation (On/Off buttons) and for speed adjustment and display
Monitoring Mode: For displaying parameters (create your own menu)
Configuration Mode: For configuring your applications and settings
Save time on commissioning
The drive can be configured before it is received (by the distributor), during storage (by the storekeeper) or during fitting before the electrical enclosure is powered up for the first time
No adjustment is required and there is a quick start guide for immediate setup
Ease of programming: Work in the language of your choice
SoMove software for configuring on PC and transferring the configuration via Bluetooth® or using a cable
SoMove Mobile software for modifying or sending a configuration remotely via mobile phone
