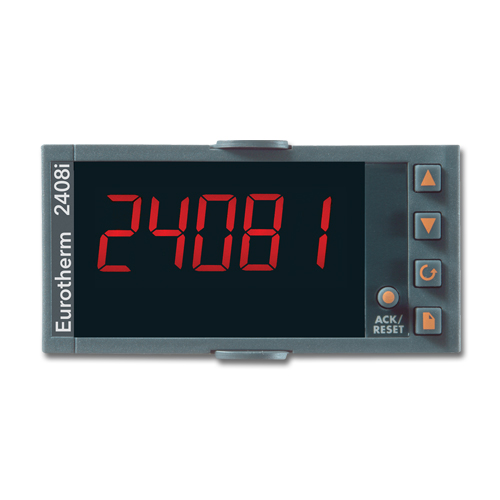

2408i Indicator and Alarm Unit

PRODUCT PROPERTIES

Ideal for:

Temperature & process indication

Process protection

Heat treatment – Furnace over temperature

Plastics processing – Extrusion melt pressure

Weighing platforms​

Features:

Universal input

Strain gauge input

Red or green display

Process variable retransmission

Serial Modbus™ comms

Profibus DP

Devicenet

TECHNICAL PROPERTIES

Description

Large 5 digit display providing excellent visibility

Furnace over temperature limits

Extrusion melt pressure indication and alarming

Fieldbus communications providing system integration

Second process input provide additional alarming strategies

Modular construction offering increased I/O flexibility

A universal input allows selection of nine internally stored sensor types. Linear inputs are scaled to the desired range. Other input linearizations may be downloaded at time of order or by using iTools. A fifteen point linearization can be used to provide an accurate indication of non-standard signals

Its large 5 digit display, available in red or green, provides you with clear indication of the process value. An optional second process input allows the average, difference, minimum or maximum of two values to be displayed and alarmed upon.

Up to three I/O modules from a total selection of nine, including relay, logic, analog and transmitter PSU, can be fitted providing excellent flexibility for a wide range of applications.

System integration can be achieved using either conventional analog retransmission or with digital communications. 2408i supports the Modbus protocol in both its serial and Ethernet formats as well as Devicenet and Profibus DP.
